iLevil3 ADS-B and AHRS Systems
iLevil3 SW iLevil Sport
iLevil AW

Light Sport? Experimental?



iLevil has you covered with weather, traffic, backup attitude, and GPS.


Buy Now

From $795

* See below for shipping information

The only product line to cover all your needs
Several years ago, Levil introduced GA pilots to AHRS with their mini-G. Now with their iLevil3 series, they've gone much further with sleek new models that combine your choice of dua-channel ADS-B, AHRS, and even pitot-static inputs.

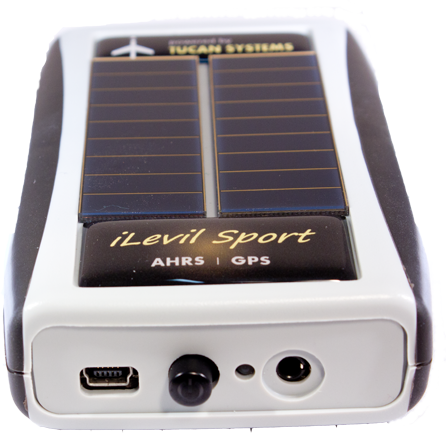

iLevil Sport - $795
This portable tool combines the latest in GPS and AHRS technology to bring pilots an affordable backup solution that is both Android and iOS compatible. The internal GPS is able to accurately track your position on top of a chart in areas where the internal GPS of mobile devices may not work. The internal AHRS provides excellent feedback of the aircraft's orientation with respect to earth's horizon and even drive Synthetic Vision applications. Take it from airplane to airplane or leave it installed, the iLevil Sport will provide peace on mind on every flight.

Note: The iLevil Sport does not include an ADS-B receiver. See the SW and AW models for ADS-B.

iLevil3 SW - $1195
The iLevil3 SW builds on the GPS and AHRS in the iLevil Sport to add a dual-channel ADS-B receiver for in-flight weather and traffic. The internal GPS and AHRS provides all the navigation information you need to turn your tablet into a real glass panel. The embedded ADS-B receiver allows you to monitor weather radar, METARS, etc in addition to traffic information all at your fingertips without any subscription. Because of its amazing ADS-B sensitivity and AHRS performance, the iLevil SW is their most popular product for General Aviation.

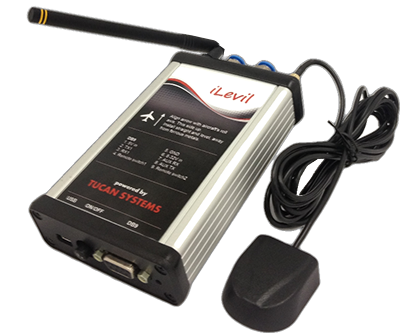

iLevil3 AW - $1395
The iLevil3 AW is Levil's top-of-the line system. It provides dual-channel ADS-B weather and traffic information, GPS navigation and AD-AHRS technology. Unlike the SW version, the iLevil AW can be used as a portable or permanent-mount instrument. It integrates static and dynamic pressure transducers which generate indicated airspeed and pressure altitude obtained from the pitot-static system, ultimately offering a "six-pack" solution displayed on a tablet. The iLevil AW facilitates installation with remote GPS and ADS-B antennas and power inputs for 12V and 28V systems. Compatibility with mobile devices makes the AW the ideal all-in-one solution for Light Sport aircraft where weight and space are an issue.

ADS-B
Introduced more than a decade ago by the FAA, ADS-B (Automatic Dependent Surveillance-Broadcast) provides weather and traffic information to all aircraft equipped with an ADS-B receiver, such as the iLevil3 SW and AW, subscription-free. The AW/SW receivers provide ADS-B weather and traffic to FlyQ EFB (sold separately) for display on an iPad.

Read the FlyQ EFB ADS-B Primer for more information

The iLevil3 AW and SW provide the following ADS-B In services: Flight Information Service-Broadcast (FIS-B). FIS-B provides regional and continental NEXRAD radar imagery from the National Weather Service, as well as NOTAMs, METARs, TAFs, PIREPs, winds aloft and other valuable in-flight weather services. FIS-B also includes information on temporary flight restrictions (TFR) and special use airspaces (SUA). *

The SW and AW also receive traffic information on the 978 (ground to air) and 1090 (air to air) frequencies for local traffic coverage. FlyQ EFB displays this traffic using intuitive colors that signify threat levels, future-position lines so you can understand where the targets will be in 2 minutes, and an optional filtering system to remove targets that pose no threat so you can focus on ones that might.

Attitude Heading Reference System (AHRS)
As a practical matter, Levil invented AHRS for general-aviation pilots. Their products facilitate FlyQ EFB by providing essential pitch-roll-heading data with its Attitude Heading Reference System (AHRS).  It works to continually sense and calculate your aircraft pitch, roll, and yaw attitude which are then transmitted to FlyQ EFB to present a virtual reality representation of your surrounding environment.  All iLevil units include professional-grade feature such as:

  • Roll, Pitch, Magnetic Heading, Rate of Turn, Inclination, and G-meter data output
  • 3-axis gyros, accelerometers and magnetometers professionally calibrated for aviation-grade performance

On-Device or Remote Attennas
You can choose to use the included antenna that attaches to the device or add an optional external antenna for enhanced reception.

Highly Accurate GPS
All iLevil units include a WAAS GPS receiver with fast location acquisition (under 30 seconds), with position updates up to 10 times per second. The GPS location information is wirelessly transmitted via WiFi to the iPad.

Long Battery Life with a Solar Panel or Plug-In
The iLevil Sport and SW include long-life batteries (8 hours for the Sport and 5 hours for the SW) and unique solar panels for extending the battery life. They can also be plugged-into ship's power via a USB jack.

The iLevil AW is reliably powered from your aircraft's cigarette or utility adapter.  Input voltage is 5V, 12V or 28V so works with nearly every plane.

Hot Day?  No Problem.
The iLevil series is designed to withstand a wide range of temperatures (-10° - 60° C / 14°-140° F​), ensuring reliable use in all aviation conditions.

Buy Now.  Now with free shipping!  From $795.

Shipping Information
Ships via UPS or USPS. Please allow 7-10 days for delivery. International (non-US) shipping not available at this time. Please email CustomerService@SeattleAvionics.com if you have any questions.
